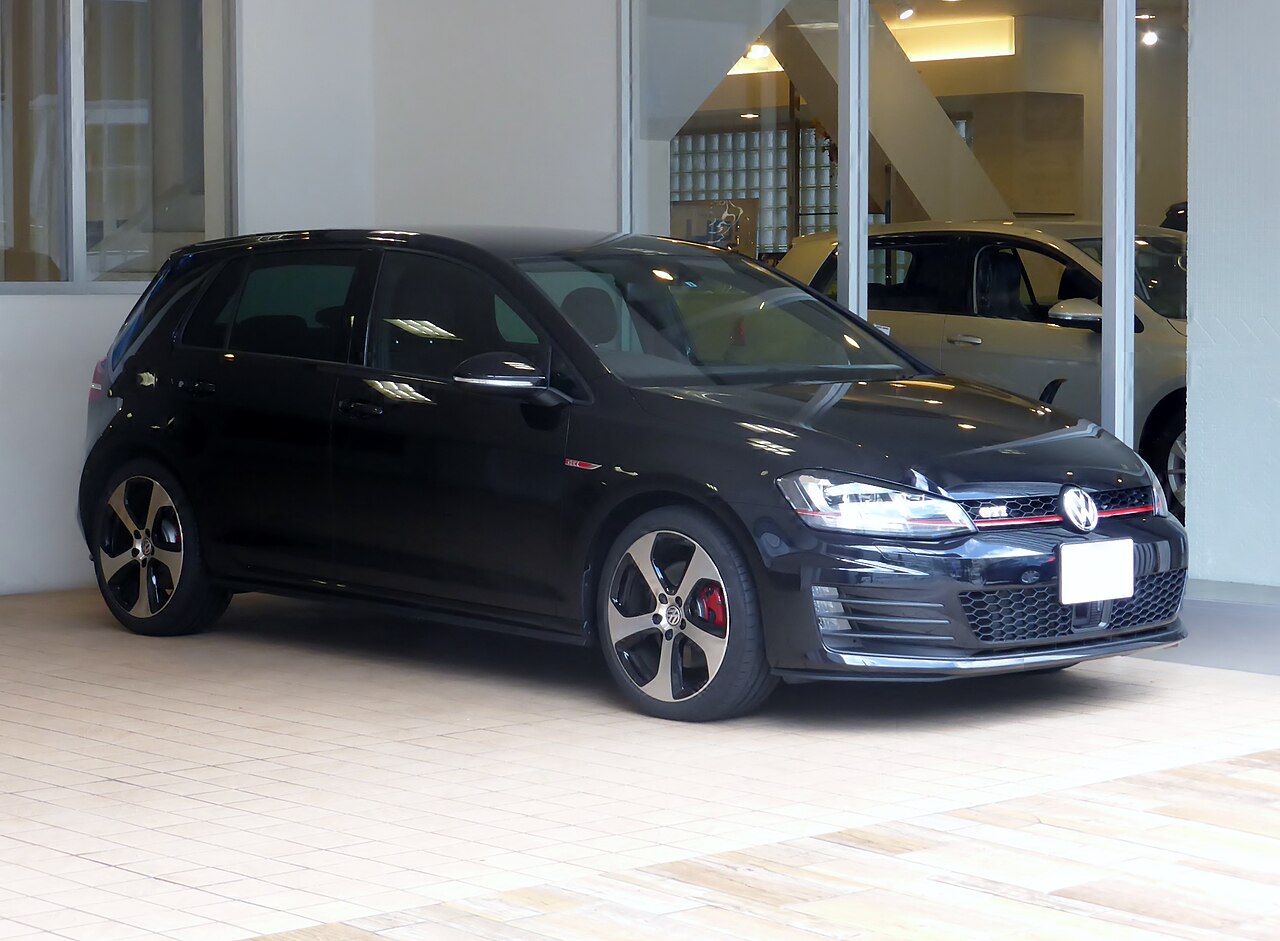

Volkswagen Golf GTI Mk7 / Mk7.5Stage 1 to Stage 4 tuning guide

Stage 1 is a new calibration flashed to the factory ECU through the OBD port. No parts are needed. The tune raises boost and adjusts ignition timing, cam timing and fuelling. It is the best horsepower per dollar you can buy for this car.

Stage 1 tunes compared

Recommended with Stage 1

• Colder spark plugs recommended APR

  Tuners recommend one step colder plugs to reduce misfires at higher boost.

Stage 2 removes the main restriction after the turbo, the factory downpipe, and runs a more aggressive file (around 20 psi of boost). An intake and a bigger intercooler are not always required, but they keep temperatures down and power consistent.

Stage 2 tunes compared

Parts list

• Downpipe with high-flow catalytic converter required APRUnitronicIECTS Turbo034MotorsportAWE TuningMilltek Sport

  The biggest restriction after the turbo. Choose a version with a catalytic converter to stay road legal.

• Intake system recommended APRUnitronicIERacingLine034MotorsportEventuriNeuspeed

  Lets the turbo breathe more easily and makes more intake noise. Small power gain on its own.

• Intercooler upgrade recommended Wagner TuningAPRUnitronicCTS TurboMishimotoForge Motorsport

  The stock intercooler heat-soaks on hot days and repeated pulls, and the tune pulls power to protect the engine.

• Charge pipe and turbo inlet recommended UnitronicIECTS TurboMishimotoForge Motorsport

  The factory plastic charge pipe can crack at higher boost.

• Cat-back exhaust optional APRUnitronicRacingLineAWE TuningMilltek Sport

  Mostly sound. Not needed for Stage 2 power.

The most popular Stage 3 is swapping the GTI's IS20 turbo for the larger IS38 from the Golf R. It bolts onto the stock engine and you can keep your Stage 2 intake and downpipe. Unitronic's IS38 file claims 381 hp and 377 lb-ft. Around 400 hp is where the stock internals are still comfortable.

Parts list

• IS38 turbo (or IS38-frame hybrid) required Unitronic IS38 kitTTEPure Turbos

  Planning to go past 450 hp later? Skip the OEM IS38 and buy a hybrid turbo now, so you don't pay for a turbo twice.

• Stage 3 / turbo-specific tune required UnitronicAPRIEEQT

  The file must match the exact turbo. A Stage 2 file on a bigger turbo will run badly.

• Intake, downpipe, intercooler required From Stage 2

  All Stage 2 breathing parts carry over.

• Upgraded clutch or DSG clutch packs strongly recommended APR (TCU tune)IE (TCU tune)Dodson (DSG clutch packs)South Bend Clutch

  Stock clutches start slipping at this torque. DSG cars need a gearbox tune at minimum.

Past roughly 400–450 hp you are borrowing time on the stock connecting rods. The stock rods are often cited as surviving around 500 wheel horsepower, but a single lean spike from a bad tune can break one far sooner. Stage 4 means rebuilding the bottom end with forged parts, then adding the turbo and fuel system to use it. A bottom-end build costs roughly $2,000–3,000; a rod through the block is a $5,000–8,000 repair.

Parts list

• Forged pistons and steel connecting rods required IEJE PistonsWisecoBAR-TEK kit

  The core of Stage 4. Sold as matched kits; choose compression ratio with your tuner.

• Rod bolts and head studs required BAR-TEKIE

  Keeps the head sealed and the rods together under high cylinder pressure.

• Big hybrid or big-frame turbo required TTEPure TurbosCTS Turbo

  For a 2.0 litre engine, compressors in the 58–66 mm range are the usual sweet spot.

• Fuel system: upgraded high-pressure pump and port injection required BAR-TEKIECTS TurboAutotech

  The direct-injection system alone can't supply enough fuel, especially on E85. Running lean is how built engines break.

• Custom dyno tune required EQTIEUnitronic

  Off-the-shelf files stop at Stage 3. The factory ECU can be flash-tuned to around 600–650 wheel horsepower; beyond that, builders move to a standalone ECU.

• Oil cooler, bigger intercooler, clutch or DSG clutch packs required BAR-TEKWagner TuningDodson (DSG clutch packs)Mishimoto

  Everything around the engine has to keep up: cooling, driveline and grip.
